Baler Troubleshooting

 Because the packing machine is simple and convenient to operate, easy to use and highly effective, it is the reason why most companies choose the packing machine. There are many problems with the packing machine. When there is another failure, how should we solve it? Today, I will briefly introduce the problems and solutions of the baler today:

How to solve the problem of the poor bonding effect of the packing belt:

1. The temperature adjustment knob is not adjusted properly.

In the electrical appliance control box of the baler, above the circuit board, open the control box cover, you can clearly see an adjustment knob, turn it clockwise to increase the temperature, and vice versa. If the temperature is too high or too low, the bonding effect is not good, so do not adjust it too much at one time, generally it can be adjusted between 4-5.

2. The power supply voltage is abnormal.

This machine should use 220V voltage. In many factories, the voltage is often insufficient. If long cables are used again, the voltage will drop, the soup temperature will be lowered, and the motor will even be burned when it is tightly tied.

3. The pull spring of the electric heating monster fails.

The long tension spring on the electric monster is tired. In this way, the inability to send the hot head between the two upper and lower straps results in half or even less adhesion.

4. Improper adjustment of the position of the ironing head of the baler.

The hot head is too high or too low, or left or right, it can't heat the upper and lower two layers of packing belt when it collides with the packing belt or the cutter. It should be adjusted according to circumstances.

5. The middle knife bearing is broken.

The middle knife bearing is broken, so it cannot be pushed up, and the packing strap is pressed to make it stick.

6. The temperature inside the machine is too high.

Failure of the exhaust micro fan caused the temperature inside the packer to be too high.

7. The heat-resistant wire of the iron is faulty.

Check whether the heat-resistant wire is broken or burnt. If the nut is loose, tighten it.

8. The tightening force of the baler is adjusted too much. Properly adjust the tightening force.

Aging problems of automatic balers:

The maintenance condition of the horizontal baler machine often determines the service life of the machine itself and the operating efficiency of the machine. The automatic baler itself is actually classified as a high-precision machine. The high-precision machine's process requirements are: Very high, its structural parts must be strictly inspected before they can be mass-produced. The internal irregularity will cause problems and defects in the automatic baler often. Secondly, it is a matter of moderation of its own use. Everything has a freight cost. The high intensity and overload of the operation make the service life of the automatic baler shorten. Moderate attention should be given.

The daily maintenance of the automatic baler is the basic work of equipment maintenance, and it must be institutionalized and standardized. Regarding the regular maintenance work of the fully automatic baler, work quota and material consumption quota shall be formulated and evaluated according to the quota. The regular maintenance work of the fully automatic baler shall be included in the assessment content of the worker contract responsibility system.

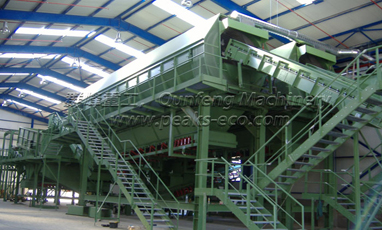

Horizontal Baler Machine

Horizontal Baler Machine

The regular inspection of the fully automatic baler is a planned preventive inspection. In addition to the human senses, the inspection method is also performed according to the regular inspection card. Regular inspection is also called regular inspection. Fully automatic baler equipment should also be thoroughly inspected and responded: inspection of oil cylinders, oil pumps, electrical appliances, and various sliding parts. The maintenance of the fully automatic baler should be carried out according to the maintenance procedures. Fully automatic packing machine maintenance regulations are requirements and regulations for the daily maintenance of equipment. Adherence to the implementation of full automatic packing machine maintenance regulations can extend the service life of the equipment and ensure a safe and comfortable working environment.
